June 2025

Welcome to the June 2025 release of CAP. Find the most noteworthy news and changes in the following sections.

• Node.js
  • Hierarchy Maintenance in Tree Views beta
  • UI5 State Messages for Drafts beta
• Java
  • Important Changes ❗️
  • Tree Views w/ H2 Database beta
  • Event Handler Enhancements
  • Media Data in Actions and Functions
  • Media Elements in Remote OData
• Tools
  • IntelliJ Community Edition Supported by CDS Plugin
  • Faster Editor Feedback in VS Code

Node.js

Hierarchy Maintenance in Tree Views beta

CAP Node.js now also supports hierarchy maintenance for draft enabled entities. It's possible to create new nodes and to add them as root or child nodes to the hierarchy. You can also modify and delete nodes. In addition, one can change a parent of a child node (move a node).

If a node is deleted, its descendant nodes are only deleted if they are in a composition relationship with the deleted node.

The same set of modifications is supported on the Object Page as well.

Supported on all databases

This feature is supported on SQLite, Postgres and SAP HANA.

Try it out yourself in our SAP Fiori bookshop sample app.

CAP Java supports this beta feature since February 2025.

UI5 State Messages for Drafts beta

CAP Node.js now also supports persisting (error) messages for draft-enabled entities and providing state messages to the UI5 OData V4 model.

The same precondition as for CAP Java applies:

• Enable the feature flag cds.cdsc.beta.draftMessages:true
• Enable OData containment mode with cds.odata.containment: true

We are working on a solution that does not require containment.

If activated, you can observe the following improvements, without changing the application code:

• Error messages for annotation-based validations (@assert...) already appear while editing the draft.
• Errors stemming from custom validations for the PATCH event are persisted as well. The invalid value is still persisted, as expected by the draft choreography.
• Messages no longer unexpectedly vanish from the UI after editing another field.
• Messages are automatically loaded when reopening a previously edited draft.

Setting this property adds additional elements to your draft-enabled entities and DraftAdministrativeData, which are required to store and serve state messages.

Requires Schema Update

Enabling draft messages requires a database schema update, as it adds an additional element to DraftAdministrativeData.

CAP Java supports this beta feature since February 2025.

Java

Important Changes ❗️

Add DevDependency to @sap/cds-mtxs

@sap/cds-mtxs is now a CAP plugin. In order to pull the build configuration correctly, you have to add @sap/cds-mtxs to the root-level package.json devDependencies:

npm add -D @sap/cds-mtxs

Tree Views w/ H2 Database beta

To simplify local development and testing with the SAP Fiori Tree Table, you can now also use a local H2 database, instead of connecting to SAP HANA.

Event Handler Enhancements

We have made several enhancements, that allow for cleaner and more intuitive custom event handler implementations.

The below examples refer to the following example model:

service Universe {
  entity World {
    name: String;
  } actions {
    function hello() returns String;
  }
}

Returning Arbitrary Types

You can now return objects of arbitrary types in your event handlers and the runtime takes care of putting them into the EventContext as result. Also, the runtime sets the context to completed.

Instead of setting the string as a context result:

@On(event = WorldHelloContext.CDS_NAME)
public void hello(WorldHelloContext context) {
  context.setResult("Hello World");
}

You can now return the string directly:

@On(event = WorldHelloContext.CDS_NAME)
public String hello() {
  return "Hello World";
}

Accessing the Service

You can now get the Service that is processing the event directly provided to your event handler, by defining a corresponding argument in the method signature.

This avoids manual casts, especially when having to access the DraftService interface or generated typed service interfaces:

Instead of obtaining the service from the context and casting it to a more specific sub-type:

@On(event = WorldHelloContext.CDS_NAME)
public void hello(WorldHelloContext context) {
  Universe service = (Universe) context.getService();
  service.run(...);
}

You can now define the specific service directly as an argument:

@On(event = WorldHelloContext.CDS_NAME)
public void hello(Universe service) {
  service.run(...);
}

Typed Entity References

You can now directly get a typed entity reference reflecting the reference of the currently processed CQN statement, by declaring a corresponding argument in your method signature.

You can directly use this reference to build type-safe queries:

@On(event = WorldHelloContext.CDS_NAME)
public void hello(World_ ref) {
  Select.from(ref).columns(w -> w.name());
}

CAP Java infers the entity for the event handler registration from the argument, so that it doesn't need to be explicitly defined in the annotation again.

Bringing It All Together

These features nicely play together like this:

@On(event = WorldHelloContext.CDS_NAME)
public String hello(Universe service, World_ ref) {
  Result result = service.run(Select.from(ref).columns(w -> w.name()));
  return "Hello " + result.single(World.class).getName();
}

Media Data in Actions and Functions

Media data like images, CSVs, and so on, can now also be used as a return type of actions and functions. The return type annotated with @Core.MediaType has to be defined within the same service of the action or function.

Example:

cds

service OrderService {
  @(Core: {
     MediaType: 'application/pdf',
     ContentDisposition.Filename: 'order.pdf'
  })
  type pdf: LargeBinary;
  entity Orders { ... } actions {
    function exportAsPdf() returns pdf;
  }
}

java

@On (event = OrdersExportAsPdfContext.CDS_NAME)
public InputStream exportAsPdf(CqnElementRef order) {
    byte[] pdf = createPdf(order);
    return new ByteArrayInputStream(pdf);
}

CAP Node.js supports this feature since February 2025.

Media Elements in Remote OData

You can now read and write media elements annotated with @Core.MediaType from remote services with CQN statements.

If you want to read image of this entity, you need to create a statement like this:

Select.from(Media_.class, m -> m.filter(f -> f.ID().eq("..."))).columns(Media_::image);

You can also write the same property with an Update statement:

Media payload = Media.create();
payload.setId(...);
payload.setImage(...);

Update.entity(Media_.class).entry(payload);

Learn more in Consuming Media Elements.

Tools

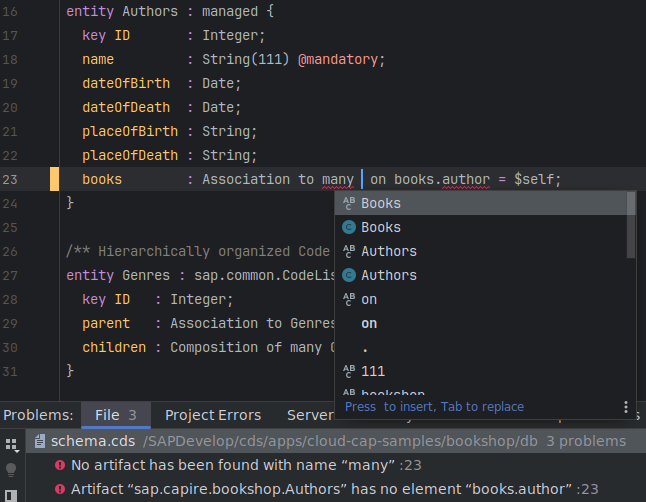

IntelliJ Community Edition Supported by CDS Plugin

Triggered by your feedback, the CDS plugin for the IntelliJ IDEs, version 2, now also runs on the Community editions, lifting the need for a commercial variant.

It will soon be availabe as an update on the JetBreains Marketplace.

Join the discussions about the plugin on GitHub.

Faster Editor Feedback in VS Code

We have improved the responsiveness and CPU usage of the CDS editor, especially for larger models.

• During typing it will defer error indicators and other diagnostics until typing finished.
• Performance while typing has been improved by aborting compilations that are not needed anymore.

This behavior can be configured:

There is a new setting cds.workspace.fastDiagnosticsMode (default: Clear). With the option Parse, an immediate error feedback is provided that relies solely on the CDS grammar, which is less accurate but faster. The old behavior of updating diagnostics after (each intermediate) compilation is finished is still available with the option Off.
